Google's Fuchsia OS: A New Kernel and the Push for Rust

Created in December 08, 2025

2025   ·   fuchsia   os   rust   kernel   google   systems   ·   systems

For years, the operating system landscape has been dominated by Linux, Windows, and macOS. But quietly, in the open, Google has been building something entirely new: Fuchsia.

Unlike Android or ChromeOS, which are based on the Linux kernel, Fuchsia is built on top of a custom microkernel called Zircon. This isn’t just another Linux distribution; it’s a ground-up reimplementation of what a modern operating system should look like.

Zircon: The Microkernel Foundation

At the heart of Fuchsia lies Zircon. Derived from Little Kernel (LK), Zircon provides the core drivers and the implementation of the C standard library (libc) necessary for the system to boot and communicate with hardware.

Why Not Linux?

A common question is: Why didn’t Google just use Linux? Android and ChromeOS are both Linux-based, so why build a new kernel from scratch?

  1. Microkernel Architecture: Linux is a monolithic kernel. This means drivers, file systems, and the network stack all run in the same privileged memory space as the kernel itself. A bug in a Wi-Fi driver can crash the entire system or introduce a security vulnerability. Zircon is a microkernel, where these components run in user space, isolated from the core kernel.
  2. Capability-Based Security: Zircon uses a capability-based security model. Processes (called “components” in Fuchsia) have no implicit rights. They can only access resources (like files or hardware) if they are explicitly granted a “handle” to that resource. This is much stricter than the standard Unix permission model.
  3. Licensing: Linux is licensed under GPL, which requires modifications to be open-sourced. Zircon is licensed under a mix of BSD/MIT/Apache, giving Google (and other manufacturers) more flexibility in how they use and modify the OS for proprietary hardware.
  4. Real-Time & Modern Hardware: Zircon was designed from day one for modern, high-speed, low-latency applications on diverse hardware, from IoT devices to phones and desktops.

What makes Zircon interesting is its microkernel architecture. In a monolithic kernel like Linux, drivers, file systems, and networking stacks all run in kernel space with high privileges. A bug in a video driver can crash the entire system.

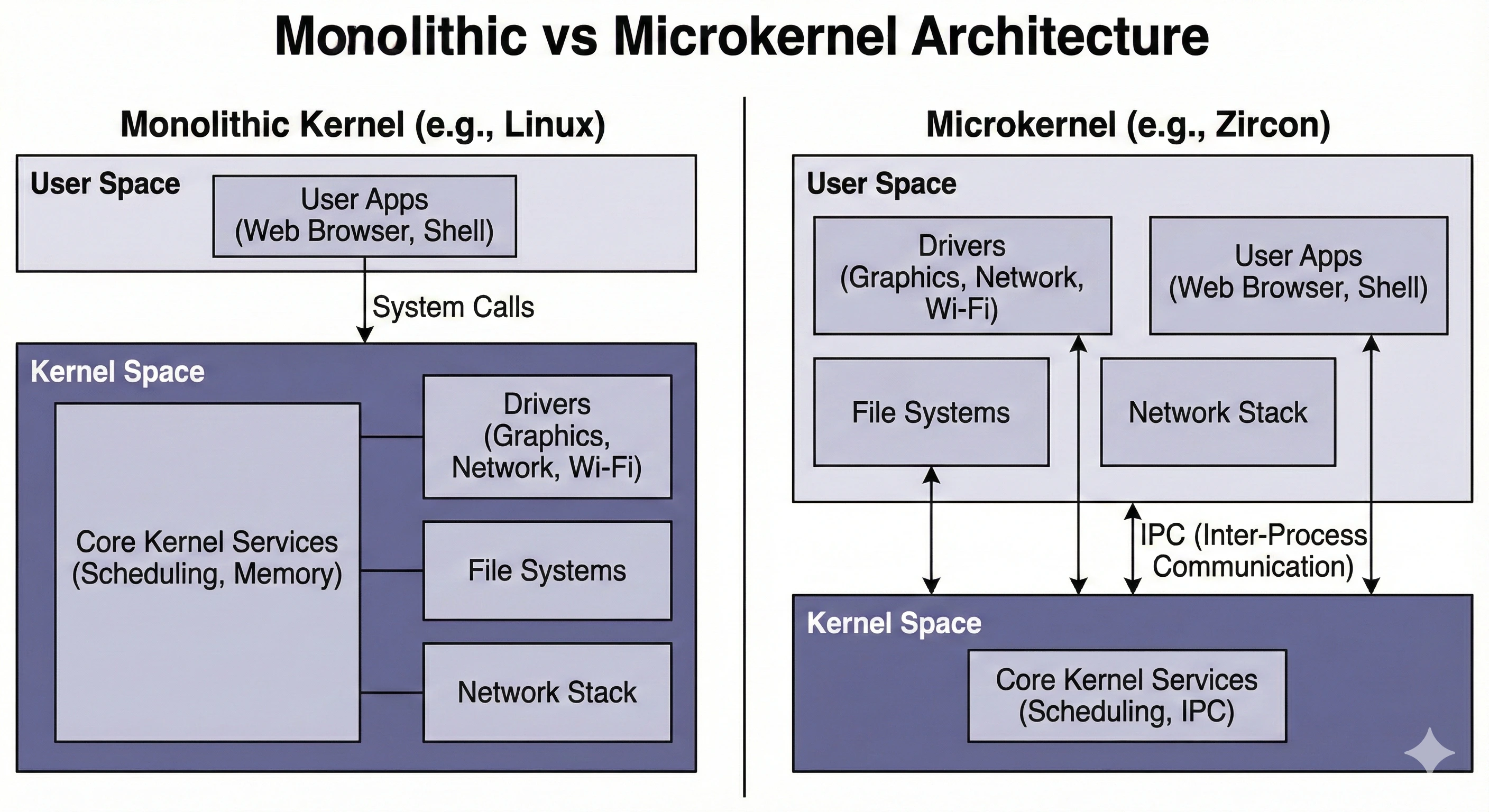

Figure 1: Monolithic Kernel (Linux) vs. Microkernel (Zircon) Architecture

In Zircon, the kernel does as little as possible:

  • Scheduling threads
  • Memory management
  • Inter-process communication (IPC)

Almost everything else (file systems, network stacks, and drivers) runs in user space. This isolation means that if a driver crashes, it can be restarted without taking down the whole OS.

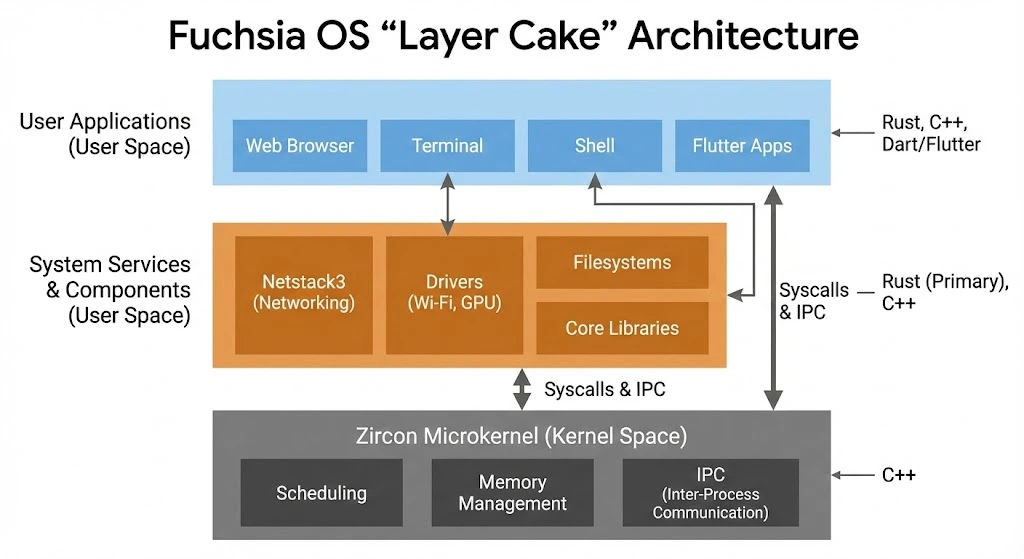

Figure 2: The Fuchsia 'Layer Cake' - Zircon (C++) at the bottom, Rust components in the middle, and Apps on top.

The Shift to Rust

Zircon itself is written in C++. When the project started, C++ was the practical choice for a high-performance kernel. However, as the project matured, the Fuchsia team made a significant strategic pivot for the rest of the operating system.

They bet big on Rust.

Rust is a systems programming language that guarantees memory safety without a garbage collector. It prevents entire classes of bugs like buffer overflows and use-after-free errors at compile time.

Why Rust?

  1. Security: Memory safety bugs are the root cause of ~70% of all severe security vulnerabilities in large codebases (according to Microsoft and Google). By using Rust, Fuchsia eliminates these bugs by design.
  2. Reliability: In a microkernel OS where components are constantly talking to each other, stability is paramount. Rust’s strict type system and ownership model ensure that components behave predictably.
  3. Concurrency: Fuchsia is heavily asynchronous. Rust’s “fearless concurrency” allows developers to write multi-threaded code without worrying about data races.

The Current State

Today, a massive portion of Fuchsia’s user-space code is written in Rust. This includes:

  • Netstack3: Fuchsia’s new networking stack, written entirely in Rust.
  • Drivers: While Zircon is C++, the framework for writing drivers is increasingly Rust-focused.
  • Components: System services and utilities are defaulted to Rust.

While rewriting the Zircon kernel itself in Rust isn’t currently planned (C++ is “good enough” for the core kernel, and the effort to rewrite is massive), the philosophy is clear: New code should be safe code.

Beyond the Kernel

A kernel alone doesn’t make an operating system. To build a modern OS, Fuchsia provides a powerful set of user-space components that sit on top of Zircon.

1. FIDL (Fuchsia Interface Definition Language)

In a microkernel, everything is a separate process. The file system, the network stack, and the graphics driver all need to talk to each other constantly. FIDL is the glue that holds Fuchsia together.

It is a language for defining how processes communicate (IPC). It is efficient, low-latency, and language-agnostic. You can define an interface in FIDL, and Fuchsia will generate bindings for C++, Rust, Go, Dart, and Python. This allows a Rust driver to talk to a C++ file system seamlessly.

2. The Component Framework

Fuchsia takes security seriously. Applications are not just processes; they are Components.

Every component runs in a strict sandbox. It starts with access to nothing - no files, no network, no hardware. If a component needs to read a file, it must request that capability explicitly, and the parent component must grant it. This “Principle of Least Privilege” architecture limits the blast radius of any security vulnerability.

3. Scenic & Flutter

Fuchsia’s graphics engine, Scenic, is built for modern hardware. It uses Vulkan as its backend and employs a unified composition model, meaning 2D UI elements and 3D objects live in the same scene graph.

For app developers, Fuchsia embraces Flutter. This allows developers to write apps in Dart that are compiled to native code, running at 60 FPS (or 120 FPS) with smooth animations. Because Flutter controls every pixel on the screen, apps look identical across Fuchsia, Android, and iOS.

Conclusion

Fuchsia represents a fascinating experiment in operating system design. It challenges the decades-old dominance of monolithic kernels and C-based user spaces. By combining a microkernel architecture with the safety guarantees of Rust, Google is building an OS that prioritizes security and reliability from the ground up.

Whether Fuchsia eventually replaces Android or remains a specialized OS for smart devices (like the Nest Hub), its influence on the industry, particularly in proving the viability of Rust for OS development, is undeniable.
